Description

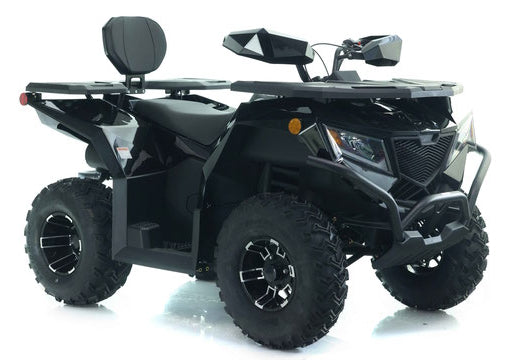

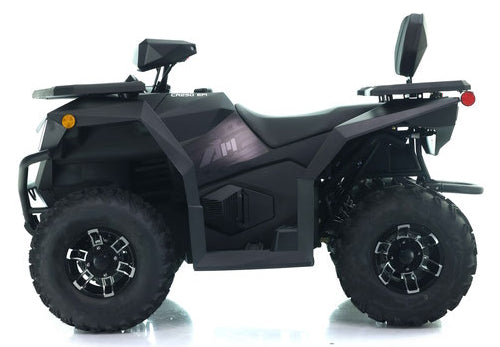

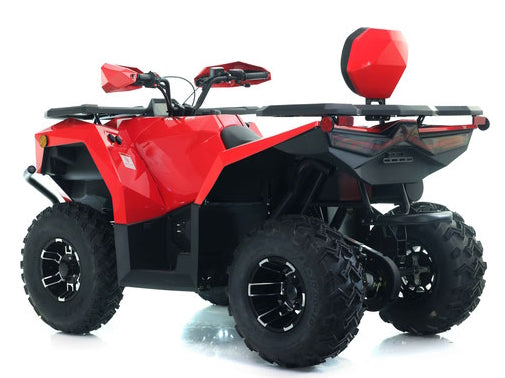

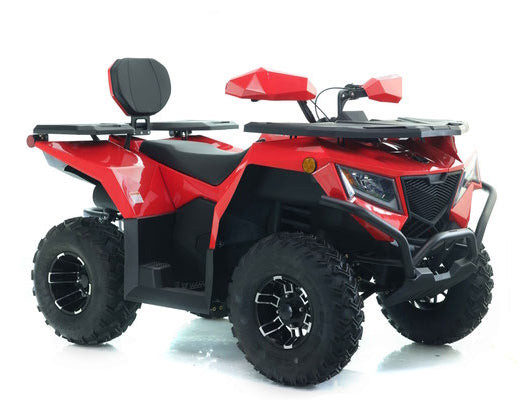

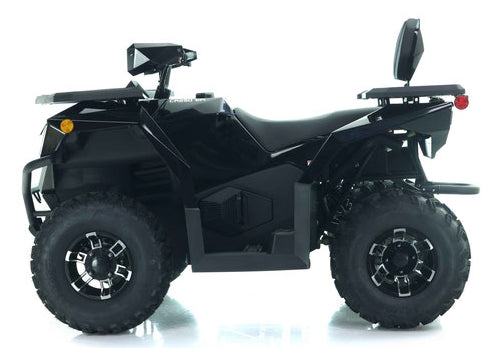

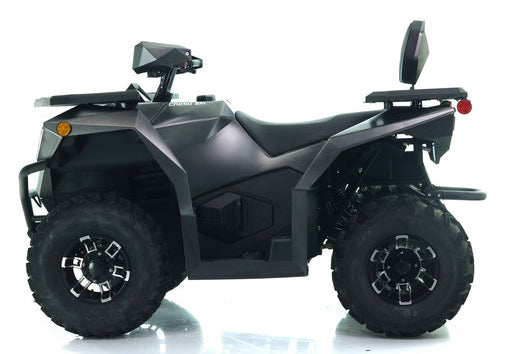

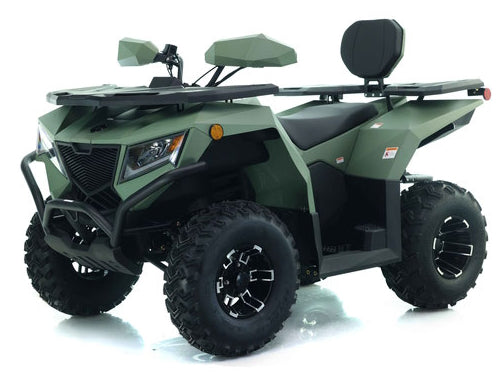

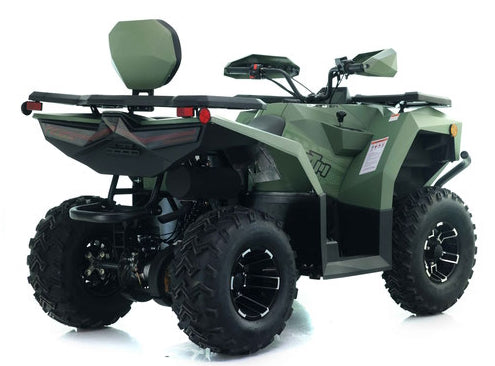

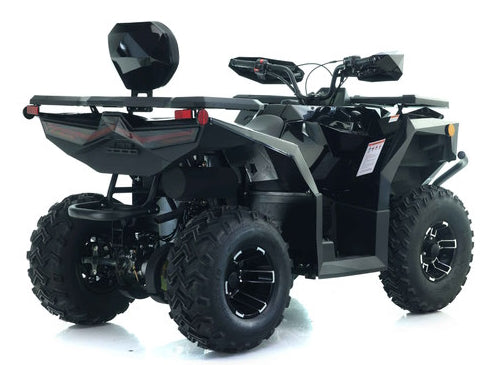

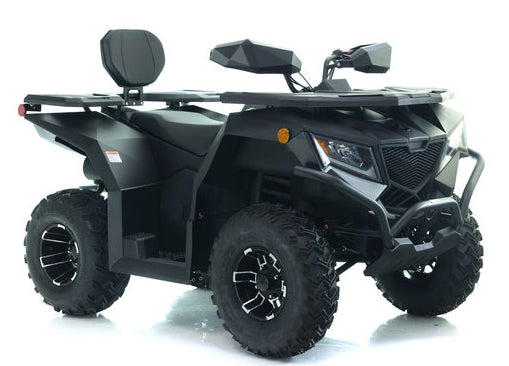

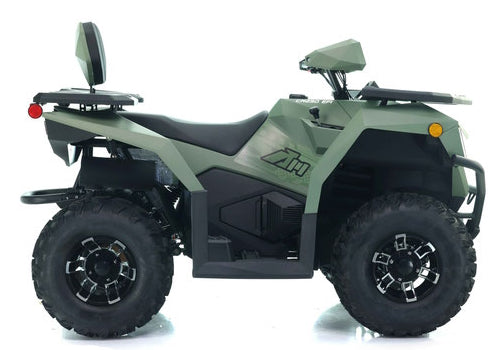

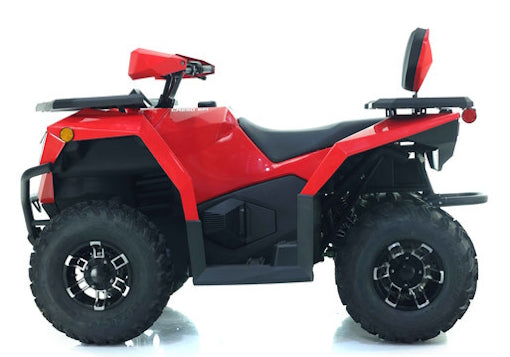

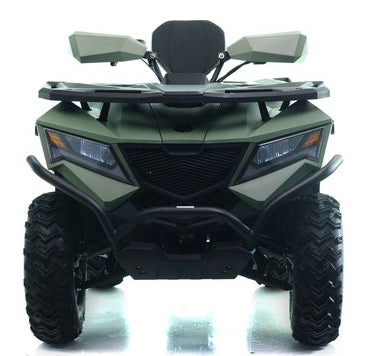

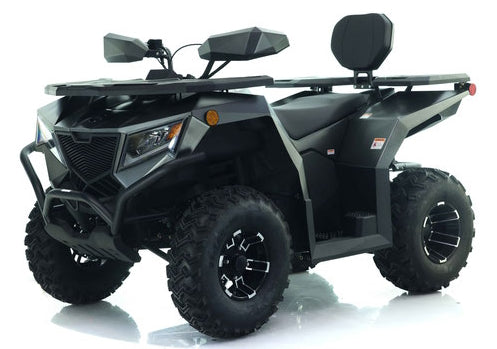

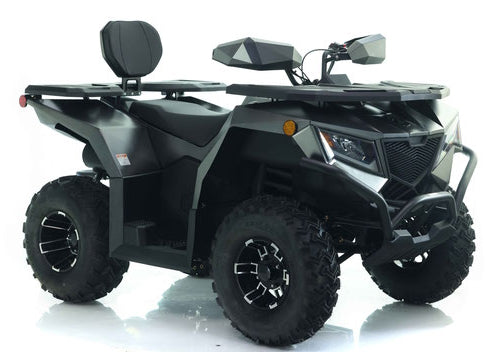

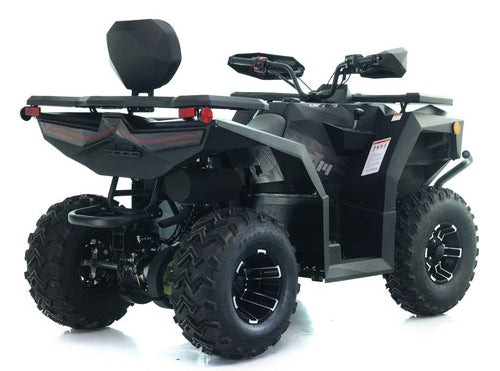

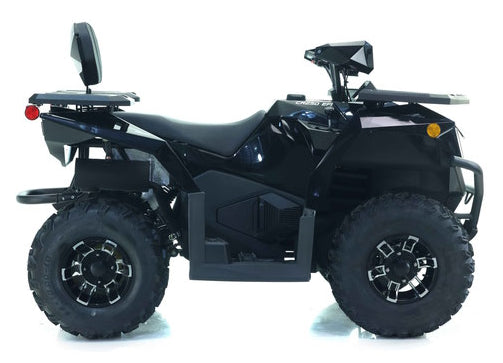

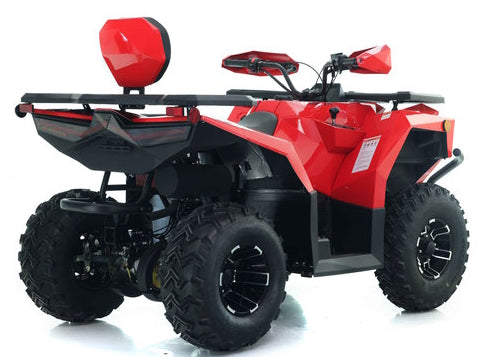

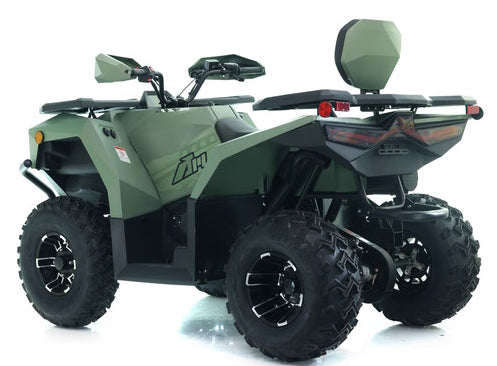

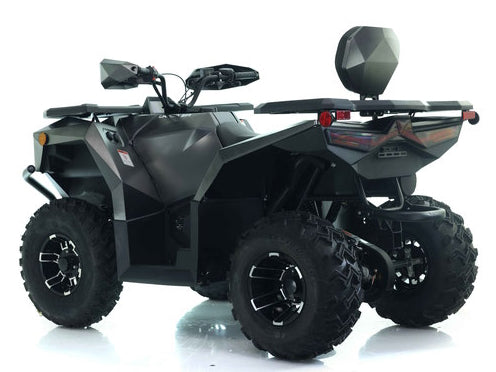

Designed for riders who demand strength, stability, and all-terrain capability, this 2-seater Utility ATV delivers a powerful yet comfortable riding experience. Engineered with a double wishbone independent front suspension and a rear flat-fork non-independent suspension, it maintains excellent balance and control across uneven terrain while supporting a maximum load of 150 kg (330 lbs).
Riders benefit from superior traction thanks to aluminum alloy “W” pattern tires—23×7-10 in the front and 22×10-10 in the rear—paired with a responsive braking system featuring front hydraulic disc brakes (hand-operated) and rear hydraulic disc brakes (foot-operated).

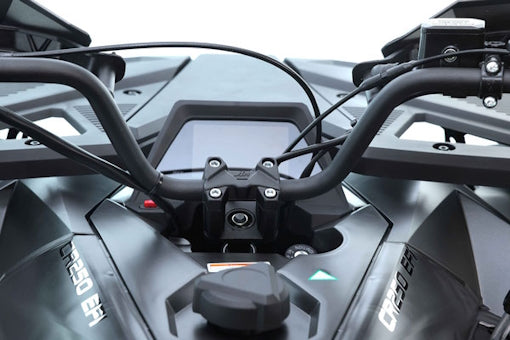

A bright, modern HD LCD speedometer delivers clear and easy-to-read information, while full LED lighting—including high/low beam headlights, daytime running lights, turn signals, and rear brake/license plate lights—ensures enhanced visibility day or night.

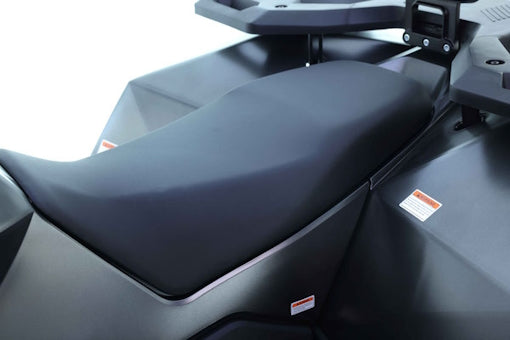

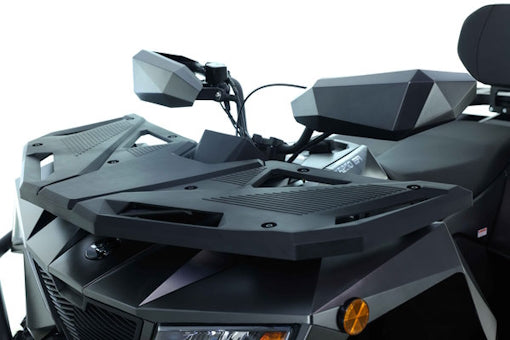

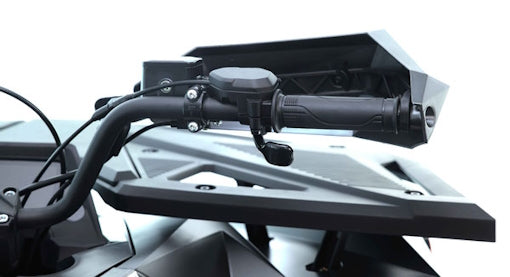

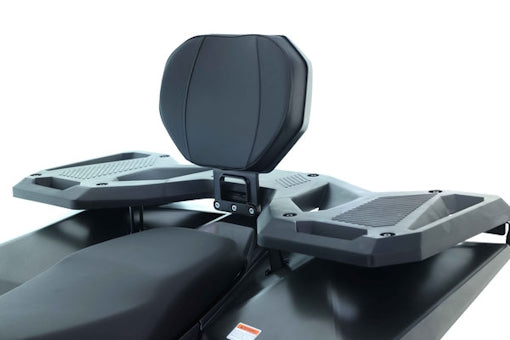

Built for both utility and comfort, this ATV includes front and rear cargo racks, a rear backrest, steel muffler, USB charging port, horn, and handlebar protectors. Its comfortable 33" seat height, 12" footrest height, and 6.69" ground clearance make it well-suited for riders of various sizes and riding environments.
Features & Specifications:
- Wheel Base: 47"
- Seat Height: 33"
- Max Load: 150kg
- Battery: 12V12AH
- Max Speed: 43 mph
- N.W.: 205kg/452lbs

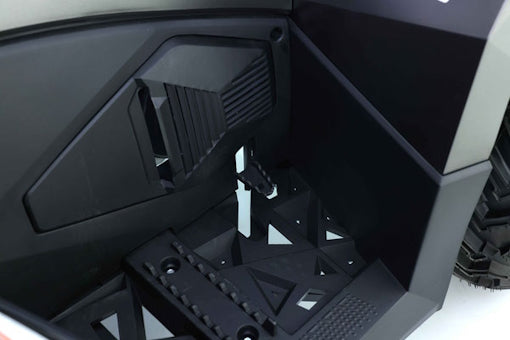

- Footrest Height: 12"
- Cooling: Oil cooling
- Ground Clearance: 6.69"
- Ignition: Electric start
- Max Power: 10.8kW/7500rpm
- Max Torque: 15.5Nm/6100rpm
- Speed meter: HD LCD screen
- Number of riders: 2 persons

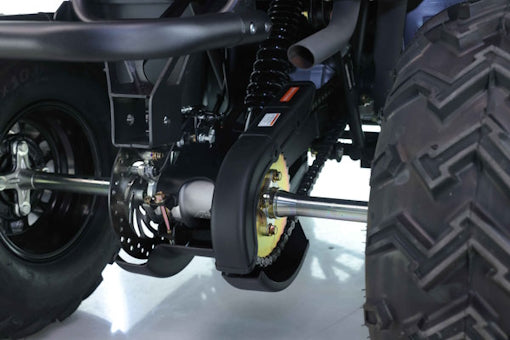

- Drive: Chain drive, rear drive
- Product Built Size: 81"x43"x48"
- Product Packing Size: 71"x45.3"x34"

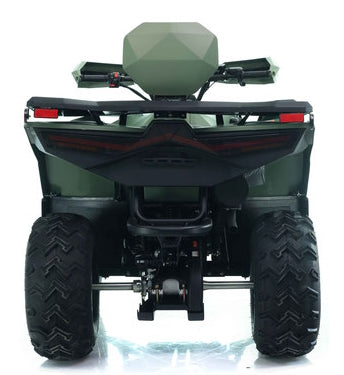

- Rear : Flat fork non-independent suspension

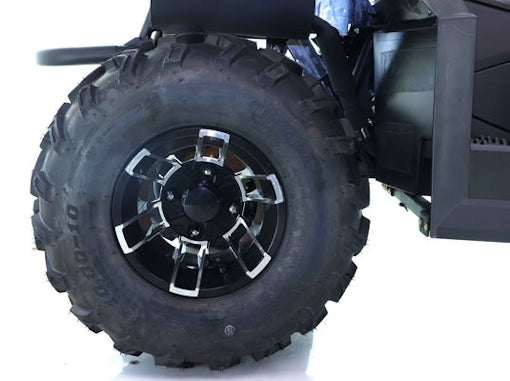

- Rear tire 22×10-10, Aluminium alloy, "W" pattern

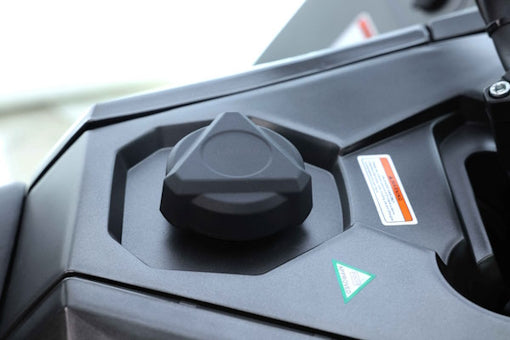

- Tank capacity: Steel, 14L, with oil measurement sensor

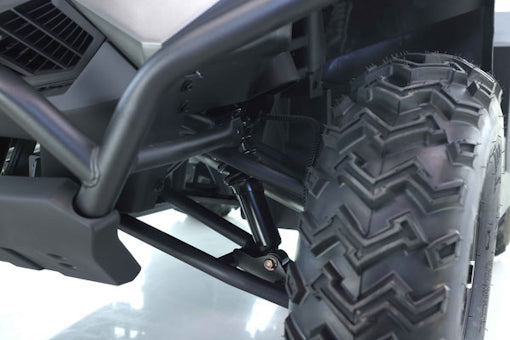

- Suspension: Front: Double wishbone independent suspension

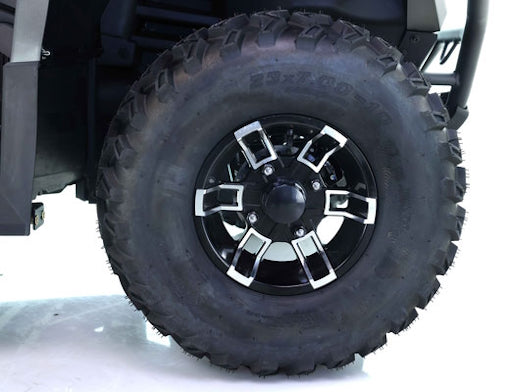

- Front Tire : "W" pattern , Front tyre 23×7-10, Aluminium alloy
- Engine: 224.2CC, CVT, F+N+R, Four-stroke, single cylinder, SOHC

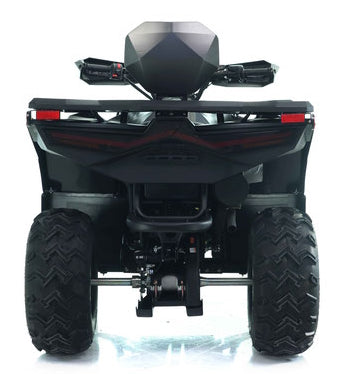

- Rear light: LED drive light, brake light, turning light, License plate light

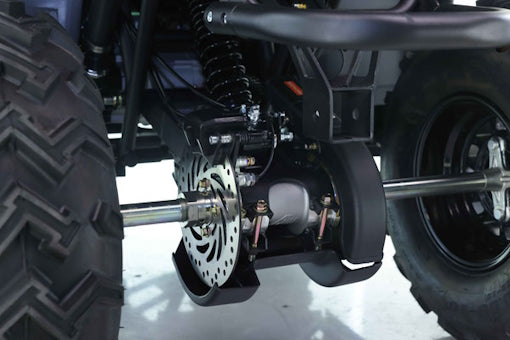

- Brake: Front - hydraulic disc brake by hand, Rear - hydraulic disc brake by foot

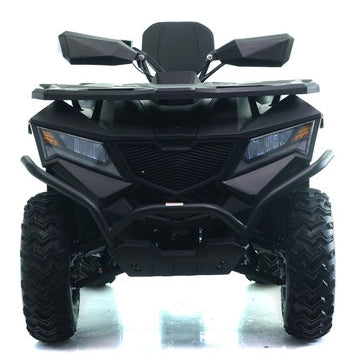

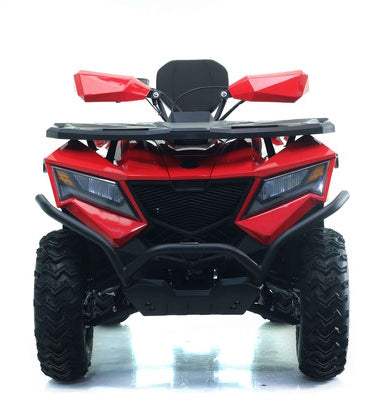

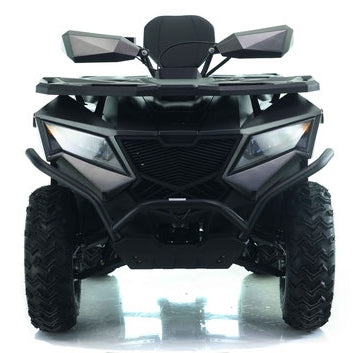

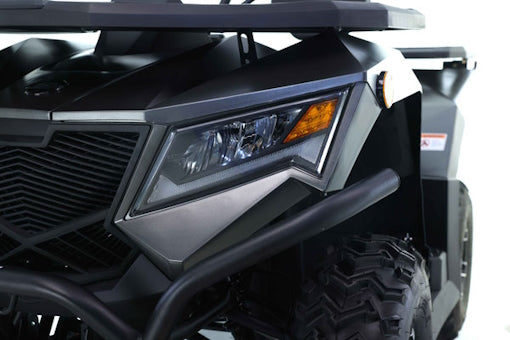

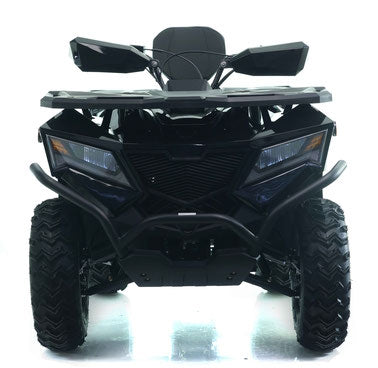

- Head light: LED high and low beam lights, LED daytime running lights and turning lights

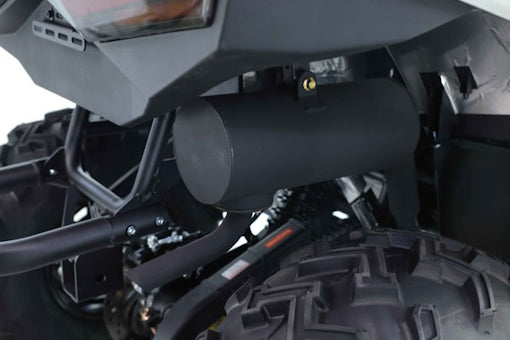

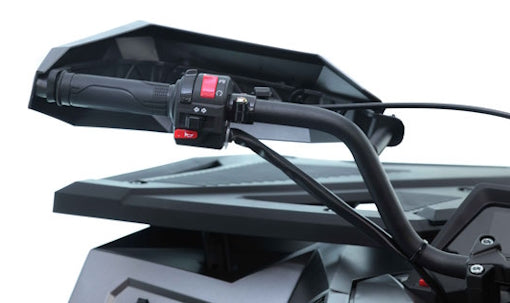

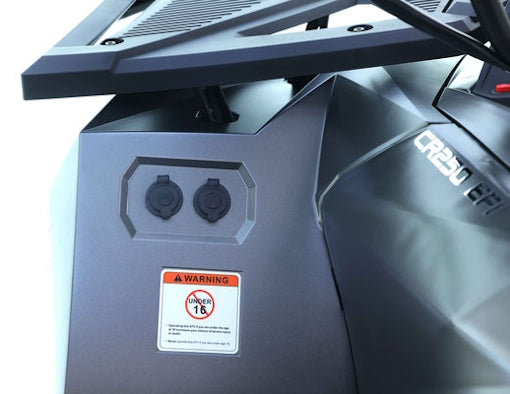

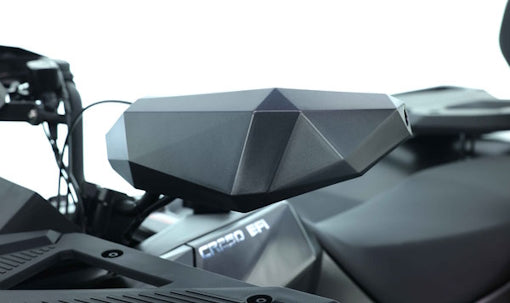

- Includes: Rear & Front Rack, Rear backrest, Steel Muffler, Horn, USB Port & Handlebar protector
