ATV Plow Installation: Step-by-Step Setup Guide

Most ATV plow installations come down to five jobs: confirm the kit fits your machine, bolt the mounting plate to the frame, attach the push tube, connect the lift (winch or actuator), and fit the blade. A first-timer with basic hand tools can usually do it in an afternoon in a garage. The part that goes wrong is rarely the wrenching. It is a mount that does not match the machine, bolts that were never rechecked, or a lift that was wired before anyone looked at the winch rating.

This guide walks through the whole process in the order you should do it, explains where installs fail, and covers what to ask if you would rather pay a shop.

TL;DR

• Match the plow kit to your exact make, model and year before you open a box. A wrong mount is the most common reason a plow will not attach.
• The order is always the same: mounting plate, push tube, lift system, blade, then wiring and adjustment.
• Raise the ATV on a jack or stand, work on level ground, and keep the machine off while you install.
• Recheck every bolt after the first hour of plowing, then again after the first storm.
• If you pay a shop, get an itemized quote that separates parts, labor and any fabrication.

Table of Contents

• Before you install: check fit, weight and your tools
• Step 1: Raise the ATV and mount the plate
• Step 2: Attach the push tube
• Step 3: Install the lift system
• Step 4: Fit the blade
• Step 5: Test, adjust and recheck
• Common installation problems and quick fixes
• Do it yourself or pay for installation?
• Our take on plow installation
• Skip the fitment gamble: ATVs that come with a plow
• A pre-season checklist
• FAQ
• Sources

Before you install: check fit, weight and your tools

The first hour of the job happens at a table, not under the machine. Read the manual that came with the kit and lay out every part. Compare the hardware bag against the parts list. Missing one bracket is a lot easier to fix on the table than halfway through a mount.

Does the kit fit your ATV?

Plow mounts are built for specific frames. Some are model-specific and bolt to existing holes, and others are universal and clamp to the frame tubes with U-bolts. Universal kits typically come with different U-bolts for round or square tubing, so you have to pick the right ones for your frame rather than use whatever is in the bag. If a plow will not seat on the machine, the cause is often the wrong mount for that model or a mount sitting too far back on the frame.

Before buying, confirm three things:

1. Make, model and year. Mount points change between generations, even on the same model name.
2. Front-mount or mid-mount design. Front mounts attach at the nose of the frame. Mid-mount systems hang from underneath and need clear space between the wheels.
3. Blade width against machine width. A blade should be wide enough to clear your tire track on both sides, but not so wide it overloads a small engine.

Our own UTV snow plow setup guide goes deeper on winch ratings and the manufacturer steps for side-by-sides, and it is worth reading if you run a utility vehicle instead of a quad. If you have a mini truck, the mini truck snow plow checklist covers weight ratings first.

Tools and workspace

You do not need a shop. A typical kit install calls for:

• A full socket and wrench set, both metric and SAE, because kits often mix hardware
• A torque wrench, so bolts are tight to the manual’s number instead of “feels right”
• Screwdrivers and a set of Allen or Torx keys
• A floor jack and jack stands, or a sturdy ATV lift
• Threadlocker, dielectric grease for electrical connections, and zip ties
• A second person, because blades and push tubes are awkward to hold and align alone

Park on level concrete if you can. Set the parking brake, shut the engine off, and disconnect the battery before you touch any wiring.

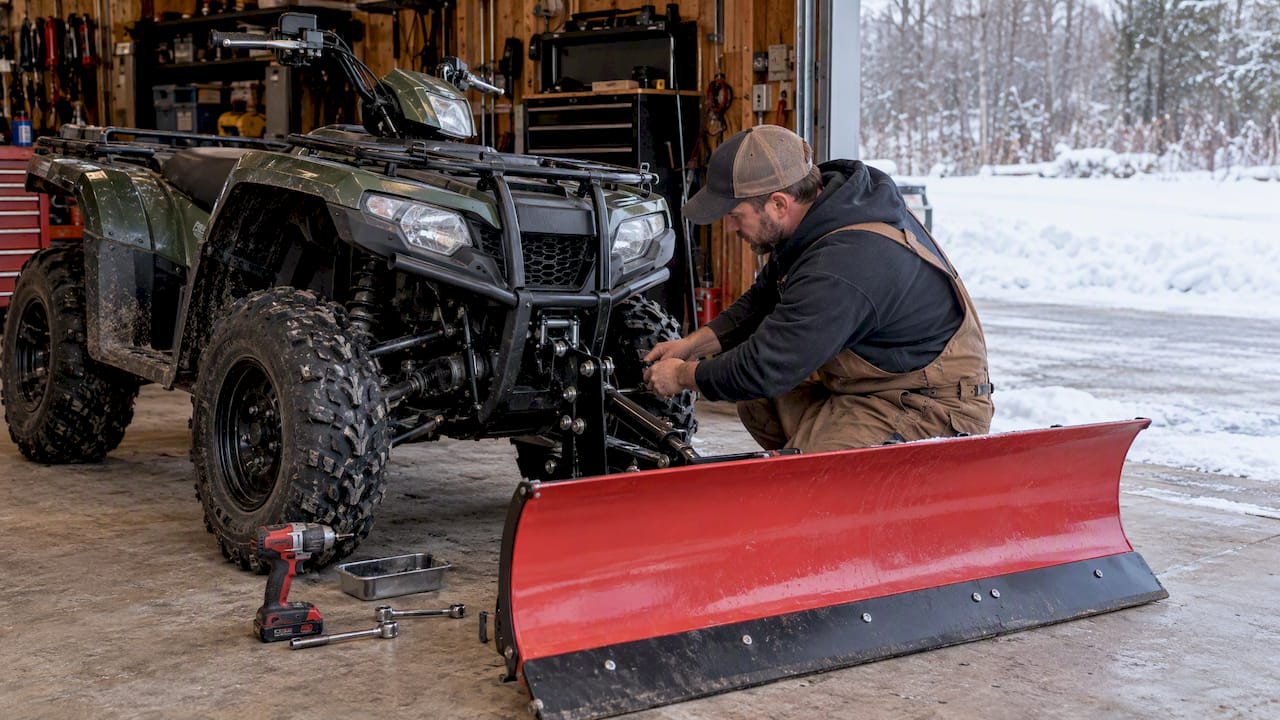

Step 1: Raise the ATV and mount the plate

Every guide begins here. As 4Wheel Online’s installation walkthrough notes, a plow system has three major parts: the mounting plate, the plow tube and the blade. The plate comes first, and before anything else you raise the ATV with a jack so you can reach the underside of the frame.

1. Lift the front of the machine and support it on stands. Never rely on the jack alone.
2. Remove any front skid plate, bumper or accessory that sits where the plate goes. Some kits require taking off a front brush guard or relocating a winch.
3. Position the plate against the frame without tightening anything. Check that it sits square and level, with no gap at the frame.
4. Install the bolts or U-bolts by hand first. For a clamp-style universal mount, use the U-bolt size that matches your frame tube shape.
5. Tighten in a cross pattern, a little at a time, then take each bolt to the torque listed in the manual.
6. Apply threadlocker to bolts that the manual says should have it.

Check the plate for clearance before moving on. Turn the handlebars lock to lock and watch for contact with the plate, the A-arms, tires or wiring. A mount that rubs on the steering stops will wear itself out quickly.

Step 2: Attach the push tube

The push tube (also called the plow tube or frame) is the arm that connects the blade assembly to the mounting plate. It carries nearly all the load when you push snow, so alignment matters.

• Slide the push tube into the plate receiver or line it up with the pivot points.
• Secure it with the supplied pins, clips or bolts. Use new cotter pins or clips if the originals look bent.
• Check that the tube swings freely through its range without binding, and that it sits centered on the machine.

If the tube leans to one side while the ATV is sitting on flat ground, stop. A crooked tube usually means the plate is off center or a bolt is in the wrong hole, and it will cause the machine to pull to one side when you push snow.

Step 3: Install the lift system

The lift raises and lowers the blade. Most ATV kits use either a hand-operated winch or a powered actuator, and the choice affects the wiring work.

Winch-based lift

Mount the winch or winch bracket as shown in the manual. Run the cable through the fairlead or guide on the push tube, and attach the hook or strap to the lift point on the blade frame. Keep the cable clear of the tire, exhaust and moving suspension parts. Before you power it, check the winch rating against the weight the blade assembly puts on it, and confirm you are within the manufacturer’s limit.

Actuator or wireless-remote lift

Powered-lift blades often include a control module and a remote. Larger side-by-side blades, such as the Tuff Lift Sidekick XL 96-inch blade with wireless remote and four-way angle control, remove the need to leave the seat. These systems need a dependable power feed, so:

• Run the power lead directly to the battery with an inline fuse, as the manual describes
• Route wires away from heat, sharp edges and moving parts
• Use dielectric grease on connectors that will see slush and road salt
• Secure the harness with zip ties at regular intervals

Reconnect the battery only after the wiring matches the diagram.

Step 4: Fit the blade

With the push tube and lift in place, attach the blade. Two people make this much easier.

1. Lift the blade to the push tube pivot and align the mounting holes.
2. Install the pivot pins or bolts and fit the retaining hardware.
3. Attach the lift cable or actuator arm to the blade.
4. If the blade came in pieces, assemble the moldboard, any trip springs and the cutting edge first, following the sequence in the manual.
5. Set the blade’s angle adjustment so it moves cleanly left and right.

Lower the blade to the ground with the machine sitting level. It should touch the pavement evenly across its full width. If one end hovers, adjust the push tube or lift point before you go anywhere near snow.

Step 5: Test, adjust and recheck

A plow that looks right in the garage can still behave badly under load. Test in this order:

1. Cycle the lift five or six times with the engine running. It should raise and lower smoothly with no grinding, and it should hold the blade up without creeping down.
2. Turn the handlebars fully each way with the blade raised and lowered. Nothing should touch.
3. Drive slowly on a flat, empty surface, with the blade just off the ground, and note any pull to either side.
4. Recheck torque. Go over every mount bolt and pin again.
5. Mark the bolts with a paint pen so you can see at a glance if one has turned.

After your first hour of actual plowing, tighten again. Vibration and cold settle new hardware, and bolts that were right in the garage can loosen after a few passes.

Brake and tire checks that people skip

A plow adds weight to the front of the machine and you will be stopping in slush, packed snow and ice melt. Check your brake pads, brake fluid and tires before the first storm, not after. Braking in slush is different from braking on dry pavement, and guidance on braking distance in slush is a useful reminder to leave extra space and to check that your brakes are in good shape before you load the front of the machine.

Also check tire pressure, since cold air drops pressure, and consider chains or studded tires if you work on ice.

Common installation problems and quick fixes

Do it yourself or pay for installation?

DIY makes sense if you are comfortable with a socket set and can follow a manual. It is a bad idea if your kit needs cutting, drilling or fabrication, or if you are not comfortable with electrical work on the battery.

If you go to a shop, quote prices vary widely, and it depends on whether the number covers labor only or the complete system. Ask for an itemized quote that separates:

• Mount and plate
• Blade and push tube
• Lift or winch
• Wiring and hardware
• Any trimming or fabrication
• Labor

Also ask whether removal and seasonal reinstallation are included. Many people take the plow off in spring and the second install costs money too. Compare any price you find against your own time. Avoid applying prices from Canadian equipment guides to U.S. jobs, since the markets, currency and labor rates differ.

Our take on plow installation

We sell a lot of four-wheelers and utility vehicles to buyers who plow a driveway or a small lot, and the same pattern shows up again and again. People focus on blade width and price, then run into trouble because the machine, the mount and the lift were not chosen as one system. A bigger blade is not a better blade if your engine is a 125cc or 200cc and the machine is working harder than it was designed to.

Our advice is simple. Match the plow to the engine and the weight of the machine, check the winch or actuator rating against the blade, and treat the bolts as maintenance items. Retorque them. If you are choosing a machine mainly to plow, buy one that already comes with a plow and mount package, because it removes the biggest fitment gamble. Be realistic about snow, too: a small ATV does well on a driveway with a few inches of powder, and it struggles with heavy, wet piles.

The best installs we hear about are boring ones: done on a weekend in October, tested, then left alone until the first storm.

— Gary

Skip the fitment gamble: ATVs that come with a plow

If you are still shopping, a package with the plow already matched to the machine avoids most of the problems above. We carry several four wheeler ATVs, including these plow-equipped models:

• 125cc fully automatic ATV with snow plow
• 200cc ATV with snow plow and reverse
• MSA 300cc 4x4 ATV with snow plow
• MSA 400 4x4 ATV with snow plow and Hi/Low gears

Check each product page for current pricing, specifications and what is included before you order. If you need something larger, browse our UTV and utility vehicles.

A pre-season checklist

Run through this list before the first snowfall:

• Mount bolts torqued and marked
• Push tube and blade pins fitted with fresh clips
• Lift cycled and holding
• Wiring protected and connectors greased
• Battery tested and charged
• Brakes, tires and fluids checked
• Cutting edge inspected for wear
• Spare pins, clips and fuses packed

Then store the plow upright and dry. If you remove it for summer, take photos of how everything fits so reinstallation is quicker.

FAQ

How long does it take to install an ATV snow plow?

Expect a few hours for a first install with a bolt-on kit, longer if you have to remove accessories or wire a powered lift. A second person and a clear manual save the most time. Allow extra time for the test and retorque steps, since those are what keep the plow safe in use.

Can I install a plow on any ATV?

Not any ATV. Mounts are designed for particular frames, and universal mounts still depend on frame tube shape and size. Check the fitment list for your make, model and year, and make sure the machine has the engine output and weight to push snow without strain.

Do I need a winch to run an ATV plow?

You need some kind of lift, and many kits use a winch for it. Some blades use a powered actuator and a remote instead. Whichever you choose, check its rating against the blade and follow the manufacturer’s instructions for mounting and wiring.

Should I have a shop install it?

Have a shop do it if the job needs fabrication, cutting or complex wiring, or if you are not comfortable working on the electrical system. Ask for an itemized quote that separates parts from labor and tells you whether seasonal removal and reinstallation are included.
