Steam Shower Leak Prevention for Homeowners: 0.5 Perms Is Not Enough

Import Junkies
October 17, 2026

The most effective steam shower leak prevention is a continuous, steam-rated membrane covering walls, ceiling, and floor, built to TCNA details and tested under ASTM E96. Verify the membrane is rated at 0.5 perms or lower, or add a secondary vapor retarder behind it. Then seal every penetration and tie the membrane into a two-stage drain.

TL;DR:

If a membrane exceeds 0.5 perms, add a 0.1 perm or lower retarder behind the wall, tested under ASTM E96 Procedure A at 50% relative humidity.

Liquid membranes suit benches and niches, but installers must verify wet film thickness because an underapplied coat can exceed the product’s vapor permeance limit.

Slope ceilings about 2 inches per foot to direct condensate toward walls, and pitch floors at least 1/4 inch per foot toward drains.

Tie the membrane into a two stage drain, protect its weep holes, and seal each fixture opening with components approved for the membrane system.

Before tiling, photograph the completed work, collect each product’s instructions, and flood test the floor for the period required by the manufacturer or inspector.

Importjunkies

Explore Steam Shower Options

Importjunkies offers steam showers alongside recreational and utility vehicles through its online store.

Visit Importjunkies

Why do steam showers need specialized vapor control?
Which waterproofing system should you choose: sheet, liquid, or bonded?
What substrate, tile, mortar, and grout work in a steam shower?
How does ceiling slope control condensate?
How do you seal penetrations, doors, and seams?
How should the drain and shower pan be detailed?
Where should the steam generator go, and how should it be piped?
What should you check before closing walls or tiling?
What maintenance keeps a steam shower from leaking?
What are the common causes and early signs of steam shower leaks?
Which materials and sealants hold up to steam over time?
How should you ventilate the area around a steam shower?
Why does system-level thinking beat piecemeal fixes?
Import Junkies steam shower options and buyer resources
FAQ
Sources

Why do steam showers need specialized vapor control?

A regular shower fights liquid water that runs down a wall and drains away. A steam shower fights vapor, which behaves differently. Steam fills the enclosure at close to 100% relative humidity, and about 115°F at 100% RH is the saturated microclimate tile-industry guidance describes. Vapor pushes through materials that would stop a splash without trouble, so a membrane that works in a standard shower can let moisture into the wall cavity.

The measure that matters is the perm rating, which is how much water vapor passes through a material over time. A lower perm number means less vapor gets through. Steam shower guidance built on the TCNA handbook calls for a bonded waterproof membrane at 0.5 perms or less, tested under ASTM E96 Procedure E at 90% relative humidity. TCNA also separates residential intermittent use from commercial continuous use, and that distinction changes which products are appropriate. If you plan to run the steam for long sessions daily, treat your shower as the more demanding case.

When vapor migrates past a weak membrane, it condenses inside the wall cavity. The results are predictable: mold on framing and insulation, softened or rotted studs, and tile that debonds from its substrate. By the time you see a stain outside the enclosure, the damage behind the wall is usually well along.

Before you buy anything, check these items on the product’s technical data sheet:

Perm rating: the actual number, not a claim that the product is “waterproof.”
Test method: ASTM E96 Procedure E for the membrane itself, and Procedure A at 50% relative humidity for a secondary vapor retarder.
Steam suitability: a written statement from the manufacturer that the product is approved for steam, high temperature, and chemical exposure.
Listings and compatibility: the ANSI or ASTM listings, plus the thin-set, drain, and tile the manufacturer approves for use with it.

If a data sheet leaves out the test method, ask the manufacturer. A perm number without a method behind it cannot be compared with anything.

Which waterproofing system should you choose: sheet, liquid, or bonded?

You have three families to choose from, and each can work when it meets the perm threshold and is installed as the manufacturer specifies.

Sheet membranes arrive in rolls with a controlled thickness, so you are not relying on someone’s brush technique to hit a number. Installation is fast, and the seams are bonded with banding or overlap details. Sheet products such as HYDRO BAN Sheet Membrane are made for the continuous, monolithic coverage steam rooms need across every horizontal and vertical surface. The tradeoff is detailing: inside corners, drains, and penetrations take patience.

Liquid-applied membranes are rolled or troweled on and cure into a continuous film. They handle odd shapes, benches, and niches well. TCNA guidance notes that continuous film liquid membranes such as RedGard can meet low-perm requirements when applied to the required dry film thickness. That last phrase is the catch. Too thin a coat means too high a perm rating, so ask for thickness checks while the coating is still wet.

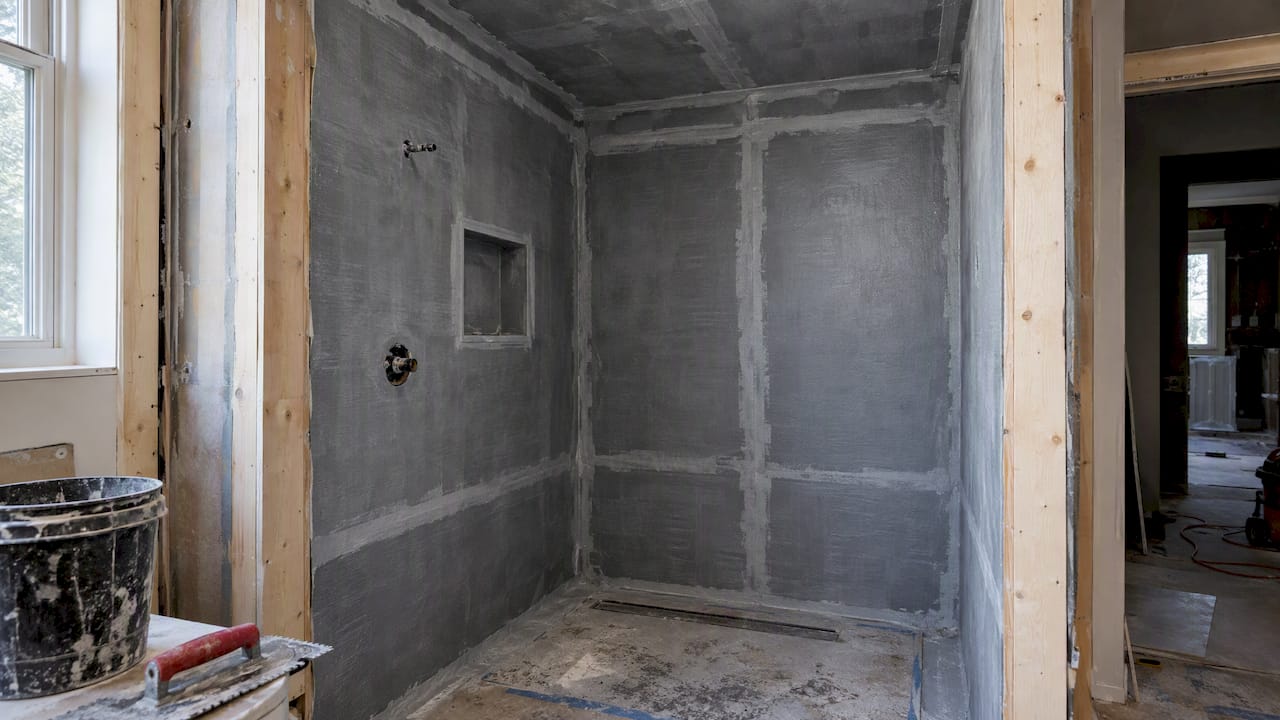

Bonded sheet systems adhere directly to the substrate and give you a surface the tile bonds to. Schluter’s lineup shows why product choice matters inside one family. KERDI at 8 mil tests at 0.90 perms under ASTM E96 Procedure E, which suits intermittent residential steam showers. KERDI-DS at 20 mil tests at 0.18 perms and is the one Schluter points to for continuous-use rooms.

Here is the rule that ties it together:

A single membrane is acceptable when its perm rating is 0.5 or lower under ASTM E96 Procedure E.
If the membrane’s rating is higher, add a secondary vapor retarder rated 0.1 perm or lower, tested under ASTM E96 Procedure A at 50% relative humidity, behind the wall assembly.
Confirm the membrane works with your chosen thin-set mortar and tile before you buy, because a mismatch can void the manufacturer’s support.
Pick one membrane family for the whole enclosure so the laps, bands, and drain details are designed to work together.

If a membrane’s perm rating exceeds 0.5, a secondary vapor retarder with a permeance rating of 0.1 perm or less must be installed behind the wall assembly. Per LATICRETE’s steam room technical design manual, that is the fallback when your membrane misses the 0.5 mark.

What substrate, tile, mortar, and grout work in a steam shower?

The substrate is what your membrane sits on, so it has to stay flat and stable when it gets hot and wet.

Cement backer board: a common wall choice. It does not rot, and liquid or sheet membranes can be applied over it. Its joints and fastener heads need treatment as part of the membrane system.
KERDI-Board: a foam-core panel used with the KERDI system. Schluter documents it as suitable for intermittent residential steam showers, with KERDI-BAND and related accessories for seams and corners.
Mortar bed floors: a pre-pitched mortar bed gives you a floor that drains toward the drain. TCNA shower detail B415 shows a floated mortar bed sloped 1/4" per foot to the drain, with a sheet-applied pan membrane tying into a two-stage drain.

Whatever you choose, TCNA-based steam shower assemblies call for cement board or mortar bed walls with a bonded membrane that is continuous across walls, ceiling, and floor. Standard drywall is not acceptable unless it is specifically rated for steam environments, and local inspectors commonly enforce that.

For tile, manufacturers lean toward ceramic or porcelain that meets ANSI A137.1. Natural stone is discouraged without guidance from the membrane manufacturer. Use a thin-set mortar that meets ANSI A118.15 and is approved for your membrane, and aim for full mortar coverage behind each tile, since voids trap water. For grout, cement-based or epoxy options both appear in steam installations. Check which one your membrane and tile manufacturers approve, and seal cement grout if its maker calls for it.

Do not forget movement. Plan soft movement joints at changes of plane and in large tiled areas, and use sealant rather than grout in those joints. Slope the tops of benches and seats so water runs back into the shower instead of pooling or running into a seam.

How does ceiling slope control condensate?

Steam rises, hits the coolest surface, and condenses. In a steam shower, that surface is often the ceiling, and a flat ceiling turns condensate into a steady drip on whoever is sitting underneath.

Sloped tiled ceiling managing shower condensate

Experienced installers treat the ceiling as the most overlooked surface. The practitioner guidance in TCNA-based details, including the International Masonry Institute’s steam room detail, is a slope of about 2" per foot so condensate travels to the walls and runs down them rather than dripping from the middle. Steam room installers add that slope matters more as ceiling height increases. A shallower slope is sometimes seen on job sites, but the reason to favor the steeper one is simple: a drip that has nowhere to go will find a way down.

Control of the assembly behind the tile matters just as much:

Insulate wall and ceiling cavities so the interior surfaces stay warm and the dew point stays away from cavity materials.
Place any secondary vapor retarder where the manufacturer specifies, and keep it continuous.
Treat the ceiling with the same continuous bonded membrane as the walls, lapped and sealed at every transition.
Use slip joints at wall-to-ceiling transitions so seasonal and thermal movement does not crack the membrane or tile.

Pro Tip: Build a mockup of the ceiling slope with a level and a string line before framing is closed, and confirm that the high point is in the center and every edge leads toward a wall.

How do you seal penetrations, doors, and seams?

Every hole you cut in a steam enclosure is a place where vapor can enter a cavity. The MrSteam builder guidance puts it directly: the most frequent post-installation problems are undersized generators, improperly sealed enclosures, and misplaced controls, and every seam, penetration, and transition has to be vapor- and water-tight.

Work through the common penetrations in this order:

Steamhead: seal around the supply pipe with the membrane manufacturer’s pre-formed seal or flange, then bond it into the membrane. Insulate the steam supply line so it does not condense in the run.
Valve and control penetrations: use the manufacturer’s recommended seals or approved sealant, keeping the penetration count to the minimum your design needs.
Light fixtures: use vapor-proof fixtures rated for steam, mounted with the specified seal, never standard recessed cans.
Control wiring: run it through sealed fittings, and keep controls where the generator manufacturer specifies.
Niches and seats: line them as part of the same continuous membrane, with sloped surfaces and sealed corners.

For the door, a full floor-to-ceiling door with a vapor-tight perimeter is the cleanest approach. If you want a transom or soffit above the door, it needs its own detailed continuous vapor barrier, because a soffit is a hollow space waiting to collect moisture. Every edge of the door needs a continuous seal, and the threshold has to tie into the floor membrane.

Before you cut anything, ask the membrane manufacturer how they want flanges and laps handled. Their pre-formed corners, bands, and seals are designed for their own system, so mixing brands at a penetration is where leaks start. Schluter’s accessory list shows how detailed this gets, with separate pieces for bands, corners, and drains.

How should the drain and shower pan be detailed?

The floor is where liquid water ends up, so the drain detail decides whether a small seep becomes a structural problem.

Two-stage drains: these have a primary drain at the surface and a secondary path below the tile bed. The membrane sheds water to the lower level through weep protection, so water that gets under the tile can still leave.
Membrane tie-in: the TCNA-based details show the bonded membrane tying into a two-stage drain with weep protection, lapped and sealed into the drain flange.
Floor slope: keep a minimum of 1/4" per foot, which TCNA method B415 shows with a pre-pitched mortar bed. A pitched mortar bed gives a consistent surface for the membrane to follow.
Weep holes: keep them clear of mortar and debris during the install. A blocked weep hole traps water under the tile.
Drain style: a bonding-flange drain is made to be integrated with its own membrane, so the membrane bonds directly to the flange. A traditional clamp-ring drain traps the membrane between two rings. Either works, but the steps and the sealing method are different, so follow the one your drain maker specifies.

Coordinate the drain choice with your membrane before the plumber sets it. Retrofitting a bonding-flange drain into a clamp-ring plan, or the reverse, tends to produce a rushed detail at the exact spot where the system is most exposed.

Where should the steam generator go, and how should it be piped?

Generator leaks are a separate risk from enclosure leaks, and they are easy to avoid with planning. Place the generator where you can reach it for service and where a drip pan can drain somewhere safe.

Install a drip pan under the generator, with a drain routed to a building drain or to the exterior, as manufacturers recommend. A drip pan is not optional when the unit sits in an attic or other concealed space.
Where the generator sits in a furred or attic space, municipal guidance such as the City of Palo Alto’s steam shower inspection notes recommends relief vents and drip pans.
Insulate the steam supply line between the generator and steamhead so steam does not condense inside the run. MrSteam builders point out this also saves energy and reduces generator wear.
Keep the manufacturer’s clearances around the unit for service and ventilation.
Write down the generator’s model and serial number and keep them with your install records.

If you suspect a leak, shut off the water and power to the generator right away, find the source of the moisture, and then contact technical support with your model and serial number ready. That is the sequence MrSteam’s FAQ recommends. For more on keeping the generator healthy over time, see our generator-first maintenance guide.

What should you check before closing walls or tiling?

This is the stage where you can catch mistakes cheaply. Once tile goes on, every defect becomes a demolition job. Ask your installer to walk through the list with you, and take photos at each step.

Read the data sheet. Confirm the perm rating and test method for the membrane, and for any secondary vapor retarder. Match them to the thresholds above.
Confirm continuity. The membrane must cover walls, ceiling, and floor with no gaps, and every lap must be bonded as the manufacturer specifies.
Check the drain tie-in. The membrane should be lapped and sealed into the flange, with weep protection clear.
Inspect every penetration. Each steamhead, valve, light, and control opening should have its manufacturer seal in place.
Verify coating thickness. For liquid membranes, check wet and dry film thickness against the data sheet.
Run a flood test. Plug the drain, fill the floor with water, mark the level, and watch it for the time the manufacturer or local inspector requires. Photograph the starting and ending levels.
Confirm tile bonding. Aim for thorough mortar coverage behind tile where the standards you are following call for it.
Collect the paperwork. Gather the installation instructions for every product and note any deviation in writing before the walls close.

Steam rooms require continuous, fully sealed waterproofing, and manufacturers such as LATICRETE state that it must handle both liquid water and vapor migration. Every item above exists to prove that continuity.

Watch for the usual contractor shortcuts: skipping the ceiling membrane, using a membrane whose perm rating is higher than 0.5 with no retarder, a flat ceiling, unsealed light fixtures, and a drain set before the membrane choice was made. Our installation nonnegotiables list covers more items worth confirming when you collect quotes.

What maintenance keeps a steam shower from leaking?

A well-built steam shower still needs routine attention. Most leaks that appear years later started as small, ignored changes.

Clean the drain and weep path regularly. Hair, soap scum, and mineral scale can slow drainage and push water where it should not go.
Inspect grout and sealant lines every few months. Look for cracks, gaps, or shrinkage, especially at corners, the floor-to-wall joint, and around the steamhead and valve trim.
Descale the generator on the schedule the manufacturer gives. Mineral buildup shortens its life and can lead to leaks at fittings.
Check the drip pan and its drain. Make sure the line is open and the pan is dry.
Dry the enclosure after use. Squeegee the glass and tile, and leave the door open or run ventilation briefly so surfaces do not stay wet for hours.
Look at the ceiling during a session. If condensate drips from the middle rather than running to the walls, the slope or a surface problem needs attention.

Keep a short log of what you inspected and when. If a problem appears, that record tells a technician what has already been ruled out.

What are the common causes and early signs of steam shower leaks?

Most leaks come from a small set of causes: a membrane that is not continuous, an unsealed penetration, a drain that was not tied into the membrane, a ceiling without enough slope, or a generator leak that was never caught. Cracked grout and failed sealant at movement joints add to the list as the years go by.

The early signs show up in the rooms around the enclosure before they show up inside it. Watch for:

Stains, bubbling paint, or soft drywall on walls shared with the shower.
A musty smell near the enclosure that does not go away with cleaning.
Efflorescence, the chalky white deposit, on tile or grout.
Loose, hollow-sounding, or cracked tile.
Water at the base of a wall or door after a session.
Unexplained moisture or dripping near the generator, or its pan filling.
Warped door trim or baseboards outside the enclosure.

If you see any of these, turn off the steam and investigate before the next session. Catching a Seed early often means resealing a joint. Catching it late means opening walls.

Which materials and sealants hold up to steam over time?

Steam is hard on materials that were not designed for it, so choose products rated for it and used as the manufacturer intends.

Membranes: choose a steam-rated membrane that meets the perm threshold, from one manufacturer family, as described above.
Mortars and grout: use an ANSI A118.15 thin-set approved for your membrane, with cement or epoxy grout as your tile and membrane makers approve.
Sealants: use a sealant rated for continuous high humidity and heat at movement joints, and check its compatibility with your membrane and tile. Where an installation calls for RTV at a penetration, use the type the fixture or membrane manufacturer names.
Fixtures and trim: use vapor-proof, steam-rated lighting and corrosion-resistant fittings. Standard drywall and standard fixtures are not appropriate unless rated for steam.
Tile: ceramic or porcelain that meets ANSI A137.1 is the usual recommendation, and natural stone needs the membrane manufacturer’s approval.

Over time, even good sealant ages. Plan to inspect and renew flexible joints on a regular basis rather than waiting for a failure.

How should you ventilate the area around a steam shower?

The goal outside the enclosure is to keep escaping moisture from settling into the rest of the bathroom. A well-sealed steam shower should release very little vapor, but the door opens, the room warms, and moisture still gets out.

Run a bathroom exhaust fan sized for the room during and after sessions, and keep it running until the room feels dry.
Vent the fan to the exterior, never into an attic or wall cavity.
Keep the enclosure door closed during use, and open it afterward so the interior can dry.
Do not rely on ventilation inside the steam room itself, since it would defeat the purpose. Ventilation belongs in the surrounding bathroom.
Watch the mirror, paint, and trim outside the enclosure. Persistent fogging or damp surfaces suggest either a gap in the enclosure or inadequate fan capacity.

If the room stays damp after sessions even with the fan on, check the door seal and the soffit first, because those are the usual places where vapor escapes.

Why does system-level thinking beat piecemeal fixes?

Most steam shower failures I see described trace back to one idea: someone treated waterproofing as a list of products instead of one assembly. A good membrane next to a poor drain detail, or a perfect floor under a flat ceiling, still leaks. The system is only as strong as its weakest transition.

So I would pick one steam-rated membrane family and stay with it, from the walls to the ceiling to the drain. Keep the data sheets, the installation instructions, and your flood test photos in one folder. If there is ever a dispute, or a buyer asks about the work years later, that folder is your proof.

I would also hire an installer who has built steam assemblies before, not only standard showers. Ceiling slope and drain tie-ins are the details where experience shows. Interview the installer, ask how they handle those two items, and compare the answer to the sections above. When you are ready to start, bring the pre-tile checklist to the job and use it as your agreement on what gets verified before the walls close.

— Gary

Import Junkies steam shower options and buyer resources

Once the plan is clear, the next step is choosing an enclosure and the parts that go with it. We sell steam showers through our steam showers collection, and our site carries buyer and installation resources to help you act on this guide.

Here is where to start:

Browse our steam shower listings to compare enclosures.
Read our steam shower buyer guide before you decide.
Contact our customer service team with product-specific installation questions, and visit Import Junkies to see everything we carry.

FAQ

What does a steam shower need to stop leaks?

A continuous, steam-rated membrane on the walls, ceiling, and floor, with sealed penetrations and a drain tied into the membrane. The membrane should meet the 0.5 perm threshold or be paired with a secondary vapor retarder.

Can a regular shower be turned into a steam shower?

Often yes, but it usually means opening the walls. A standard shower rarely has a steam-rated membrane on the ceiling, a sloped ceiling, or sealed penetrations. You would need to bring the whole enclosure up to steam-shower detailing, not just add a generator.

What should I do if my steam generator leaks?

Shut off the water and power to the generator right away, then find the source of the moisture. Contact technical support with the model and serial number ready, as MrSteam’s FAQ advises. A drip pan under the unit catches leaks while you sort it out.

How steep should a steam shower ceiling be?

Practitioner guidance in TCNA-based details is about 2" per foot, so condensate runs down the walls instead of dripping from the middle. A taller ceiling makes the slope matter even more.
